产品尺寸及重量包装清单
产品尺寸： 475*280*663mm
单品包装：79*64*45㎝
产品净重：35kg

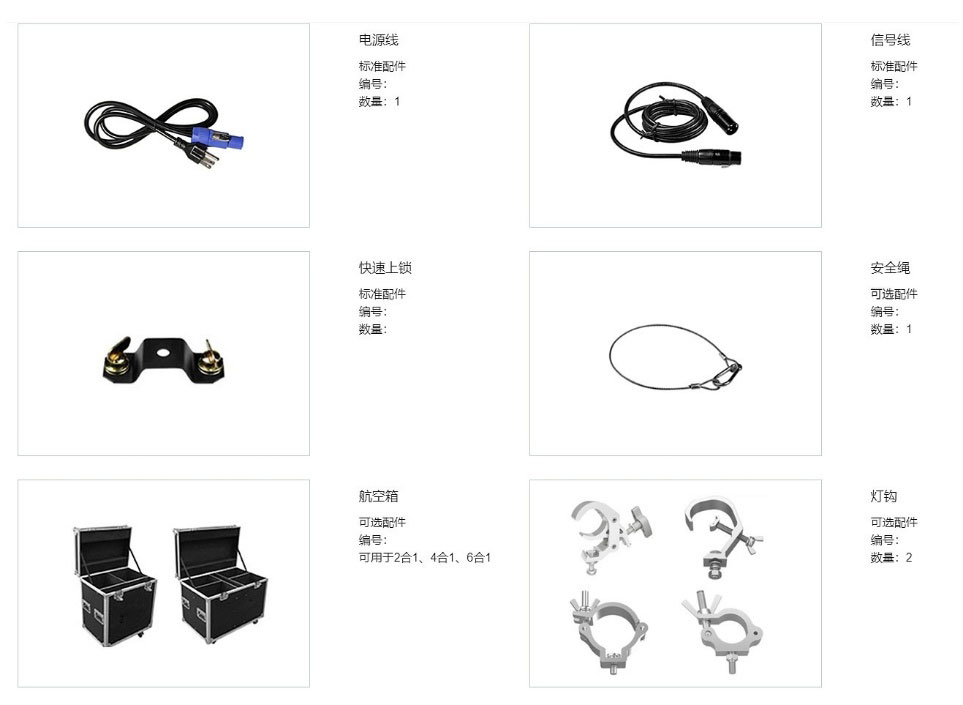

包装标准：电源线一条，信号线一条，说明书一份，吊挂件一套
额定电压：AC100V～240V 50/60Hz
输入功率：1500W
光源规格：37颗40W四合一 LED欧司朗光源
核定寿命：30000小时
颜 色：红绿蓝白多种颜色
调 焦：2°-60°DMX线性调焦，具自动调焦功能
色温调控：内置CTO DMX线性调光
电子频闪，0.3～25次/秒，可选择同步、异步随机频闪
调 光：电子调光0～100%线性调节，具有伽马曲线调光频率1.2K～25K可调，具宏指令调光线性稳定平滑不闪烁，采用稳定的恒流驱动和电源，适合录像拍摄
旋转角度：XY轴采用高速静音60加厚三相电机驱动，搭配高精度进口磁编码定位装置，使运行定位更精准，当发生误动后可自动归位，水平、垂直速度可调；XY轴调转功能和取反功能
水平方向540°（16 bit精度扫描），垂直方向270°（16 bit精度扫描）
控制方式：21CH/132CH/169CH/22CH/133CH/170CH/35CH/146CH/183CH/36CH/147CH/184CH（标准） 5种通道控制模式，标准DMX512协议，RDM协议
控制接口：DMX512接口（3芯/可选配5芯）、电源线手拉手插座
休眠功能：采用先进的技术实现远程休眠功能，当灯具断开信号时自动进入休眠状态，使灯具更稳定更安全
显示功能：2.8寸触摸显示屏、中英文双语菜单、传感器故障显示，温度显示
散热系统：采用高导铜管散热器，风机智能监控技术根据灯具温度自动调节风机转数，内置过热保护智能系统/智能温度与噪音平衡模块
防护等级： IP65
灯具包装：防水防震航空箱或纸箱
净重：35kg 产品尺寸:
效果模式：(漩涡，万花筒，染色，光束)
前置镜盘可变向无极旋转、无缝拼接镜盘，非球面镜片结构，灯珠单颗点控控制灯带效果:频闪、跑马效果，带内置程序
特点：
1.屏幕自动旋转功能，系统可根据重力方向，自动旋转屏幕，无需手动旋转！也可以关闭自动旋转功能
Rated voltage: AC100V～240V 50/60HzInput power: 1500WLight source specifications: 37 x 40W four-in-one Osram LED light sourceRated lifespan: 30000 hoursColor: Red, green, blue, white and various colorsFocusing: 2°-60° DMX linear focusing with automatic focusing featureColor temperature adjustment: Built-in CTO DMX linear dimmingElectronic strobe: 0.3～25 times/second, selectable synchronized or asynchronous random strobeDimming: Electronic dimming 0～100% linear adjustment, with Gamma curve dimming frequency adjustable from 1.2K to 25K, featuring macro command dimming linear stability and smooth flicker-free operation, using stable constant current drive and power supply, suitable for video recordingRotation angle: XY axis driven by high-speed silent 60 thickened three-phase motor, paired with high-precision imported magnetic encoding positioning device for precise operation positioning, can auto-return after misoperation, adjustable horizontal and vertical speeds; XY axis rotation and inversion functionsHorizontal rotation: 540° (16-bit precision scanning), vertical rotation: 270° (16-bit precision scanning)Control method: 21CH/132CH/169CH/22CH/133CH/170CH/35CH/146CH/183CH/36CH/147CH/184CH (standard) 5 control modes with standard DMX512 protocol and RDM protocolControl interface: DMX512 interface (3-pin / optional 5-pin), power cord with powerjackSleep function: Advanced technology enables remote sleep function, automatically enters sleep mode when the light is disconnected from the signal, making the light more stable and saferDisplay features: 2.8-inch touch display, bilingual menu in Chinese and English, sensor fault display, temperature displayCooling system: High conductivity copper pipe heat sink, fan smart monitoring technology automatically adjusts fan speed based on light temperature, built-in overheating protection intelligent system / smart temperature and noise balance moduleProtection level: IP65Light packaging: Waterproof and shockproof aviation case or cartonNet weight: 35kg Product dimensions:Effect modes: (Whirlpool, Kaleidoscope, Dyeing, Beam)Front mirror can change direction with stepless rotation, seamless splicing mirror disk, aspheric lens structure, individual point control for light strip effects: strobe, running horse effect, with built-in programFeatures:1. Screen auto-rotation function, the system can automatically rotate the screen according to the direction of gravity, no manual rotation needed! The auto-rotation function can also be turned off.
